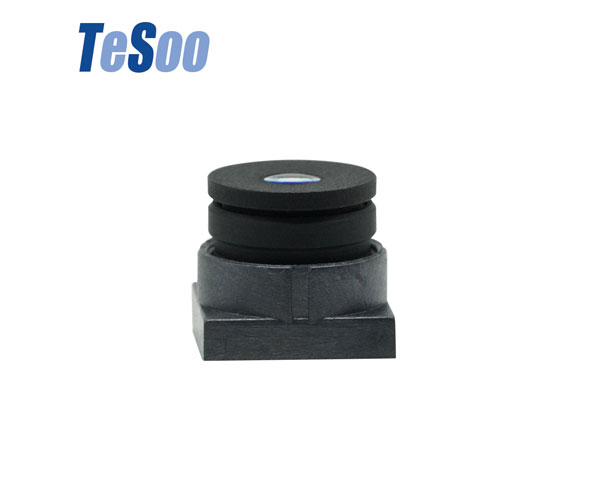

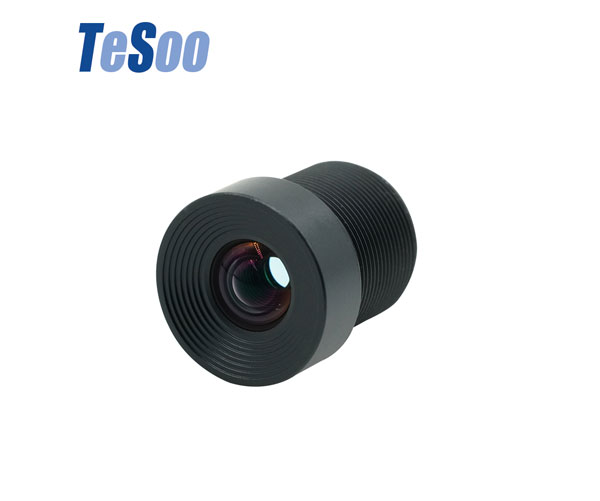

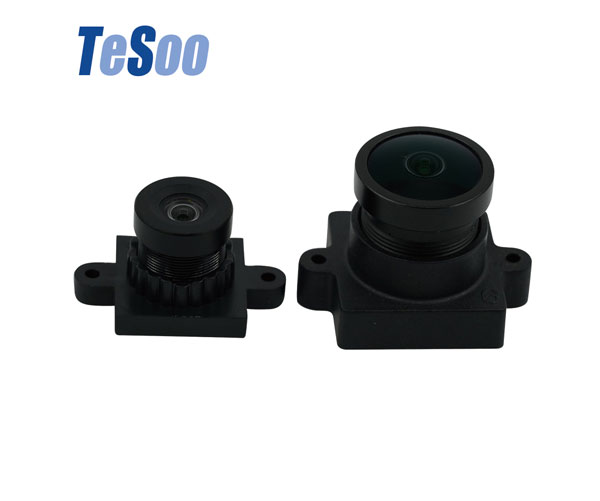

Tesoo Wide Angle No Distortion Lens

Tesoo wide angle lens no distortion can reduce the degree of perspective deformation. The sensor size of wide angle no distortion lens is 1/2'' to 1/4''. TTL: 5.99-22.3mm. EFL: 1.65-16mm. F.NO: 2.0/2.2/2.4/2.6/4.0/4.8/5.7. MBFL: 1.48-5.20mm. Get no distortion lens price now!

Buy Tesoo Wide Angle No Distortion Lens   >

Sliding

02

Tesoo Wide Angle No Distortion Lens Specifications


Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
PART No.TS-2710L-A10
TTL9.95mm
EFL2.60mm
F/NO2.4
MBFL1.81mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)109°122°
(H)89°102°
(V)64°62°
TV-DISTORTION＜-4%＜-10.5%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION1G5P+Plastic
DIAMENSIONSφ10*8.14
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
PART No.TS-2322H-A00
TTL22mm
EFL4.28mm
F/NO2.2
MBFL2.55mm
SENSOR SIZE1/2.5''1/2.3''
FOVFOV
(D)78°82°
(H)66°69°
(V)36°55°
TV-DISTORTION＜-1%＜-1.5%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
CONSTRUCTION4G2P+Metal
DIAMENSIONSφ14*19.45
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +90℃



Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
PART No.TS-2709G-A08
TTL8.47mm
EFL4.60mm
F/NO2.6
MBFL1.48mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)68°72°
(H)59°66°
(V)38°39°
TV-DISTORTION＜-1.5%＜-2%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION3G1MG+Metal
DIAMENSIONSφ9*6.99
Operating temp.-30 ~ +80℃
Storage temp.-40 ~ +85℃


No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
PART No.TS-2508H-A09
TTL7.49mm
EFL4.80mm
F/NO2.6
MBFL1.74mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)72°77°
(H)62°67°
(V)36°39°
TV-DISTORTION＜-1%＜-1%
MAX IMAGE CIRCLEφ8.2mm
MountM9*0.35
CONSTRUCTION2G2P +Metal
DIAMENSIONSφ9*5.75
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NO4.8
MBFL2.89mm
SENSOR SIZE1/3''1/2.5''
FOVFOV
(D)22°27°
(H)20°23°
(V)11°13°
TV-DISTORTION＜-0.1%＜-0.5%
MAX IMAGE CIRCLEφ7.60mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*13.11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
PART No.TS-2722L-B00
TTL22.3mm
EFL1.65mm
F/NO2.0
MBFL5.20mm
SENSOR SIZE1/2.8''1/2.7''
FOVFOV
(D)118°120°
(H)110°115°
(V)84°85°
TV-DISTORTION＜-1%＜-1.5%
MAX IMAGE CIRCLEφ7.0mm
MountM12*0.5
CONSTRUCTION6E+Plastic
DIAMENSIONSφ14*17.1
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


Wide Angle No Distortion
Wide Angle Lens No Distortion
No Distortion Lens
Wide Angle No Distortion
Wide Angle Lens No Distortion
PART No.TS-4006E-AM6
TTL5.99mm
EFL4.63mm
F/NO5.7
MBFL1.99mm
SENSOR SIZE1/4''
FOV
(D)50°
(H)44°
(V)26°
TV-DISTORTION＜-0.08%
MAX IMAGE CIRCLEφ4.8mm
MountM5.8*0.235
CONSTRUCTION4E +Plastic
DIAMENSIONSφ3*4
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃
