Tesoo Car DVR Lens

Tesoo Car DVR lens is universally used for car camera bracket reversing rearview image driving recorders. The steps of determining the assembly position of the car DVR lens include: selecting a suitable camera lens; obtaining the field of view data of the lens and the A-side data of the car; and performing data simulation on the acquired data to determine the assembly position. After adjusting the position of the car DVR lens, the angle between the camera and the horizontal plane is also adjusted to make it within the assembly tolerance range. The steps of adjusting the position of the car DVR lens correction device include: locating the most protruding part of the rear bumper of the car; adjusting the longitudinal zero position of the camera correction device so that the longitudinal zero coordinates of the camera correction device is located perpendicular to the most protruding part of the rear bumper online. Tesoooptical is one of the leading automotive camera lens manufacturers in China and we produce different types of lenses for customers to choose. Welcome to buy the qualified car DVR lens from Tesoo.

Buy Tesoo Car DVR Lens >

How To Choose Car DVR Lens?

Three Important Factors To Choose Superior Car DVR Lens

Viewing angle: the larger the car DVR lens's viewing angle, the wider range that can be recorded. Now the mainstream car DVR has a viewing angle of 120 degrees or more, and a better model can reach 170 degrees, and there are 360-degree models with no dead ends.

Image quality: image quality of car dvr lens depends on lens quality, sensor quality, and system configuration. Of course, environmental factors such as light intensity, angle, and vehicle speed will affect the image quality. Under the same conditions, the higher the pixel, the better.

Night vision ability: the quality of night vision mainly depends on two factors: aperture size; sensor ISO value range. The larger the aperture and the higher the ISO, the more sensitive to light, and bright video can be recorded in the evening or even at night.

Specifications of Tesoo Car DVR Lens



ED (Extra-Low Dispersion) Glass

An optical glass developed by Tesoo that is used with normal optical glass in telephoto lenses to obtain optimum correction of chromatic aberrations.



PART No.	TS-2717O-A00
TTL	16.8mm
EFL	3.2mm
F/NO	F2.0
MBFL	5.06mm
SENSOR SIZE	1/2.7"
SENSOR SIZE	FOV
(D)	152°
(H)	119°
(V)	60°
MAX IMAGE CIRCLE	φ6.8mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ14*13.1
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2714P-A00
TTL	14mm
EFL	2.9mm
F/NO	F2.4
MBFL	4.31mm
SENSOR SIZE	1/2.7"
SENSOR SIZE	FOV
(D)	163°
(H)	132°
(V)	66°
MAX IMAGE CIRCLE	φ7.0mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ14*9.7
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



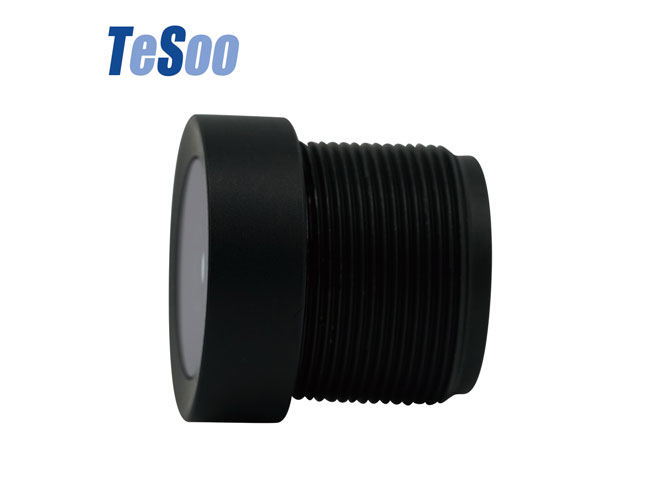

PART No.	TS-2718O-A00
TTL	18mm
EFL	3.3mm
F/NO	F2.0
MBFL	4.31mm
SENSOR SIZE	1/2.7"
SENSOR SIZE	FOV
(D)	150°
(H)	119°
(V)	60°
MAX IMAGE CIRCLE	φ6.8mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ14*13.2
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2721N-C00
TTL	21mm
EFL	3.3mm
F/NO	F2.2
MBFL	5.1mm
SENSOR SIZE	1/2.7"
SENSOR SIZE	FOV
(D)	140°
(H)	110°
(V)	68°
MAX IMAGE CIRCLE	φ6.8mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ14*15.9
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃
