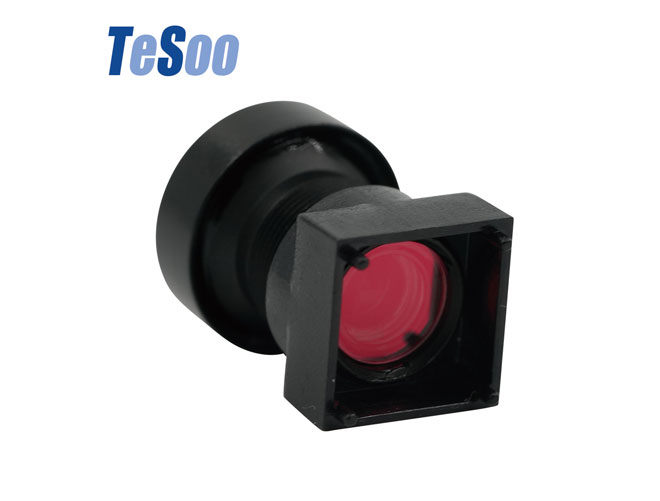

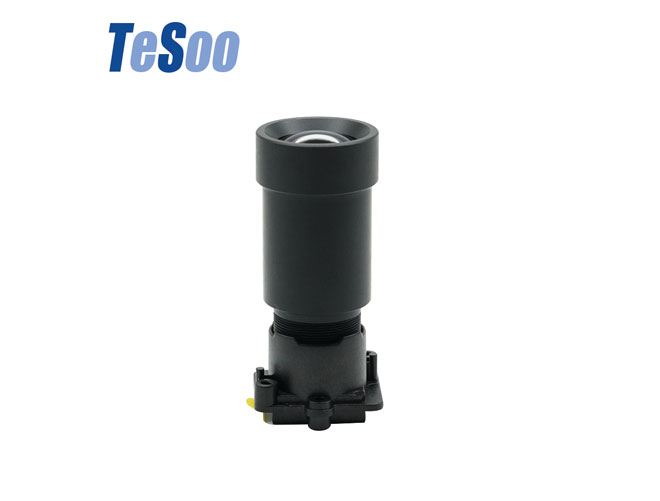

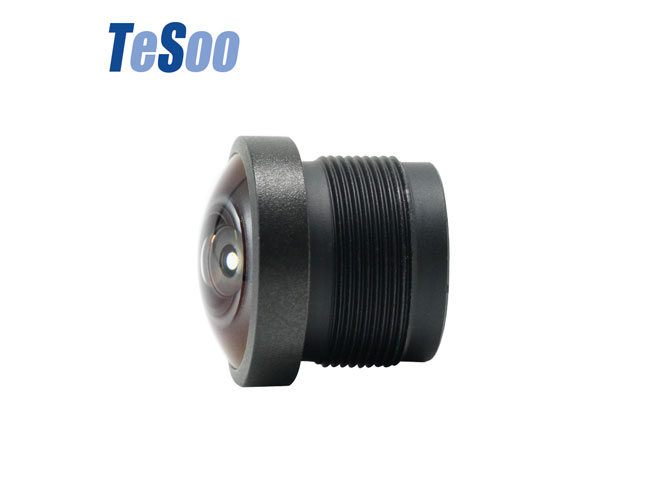

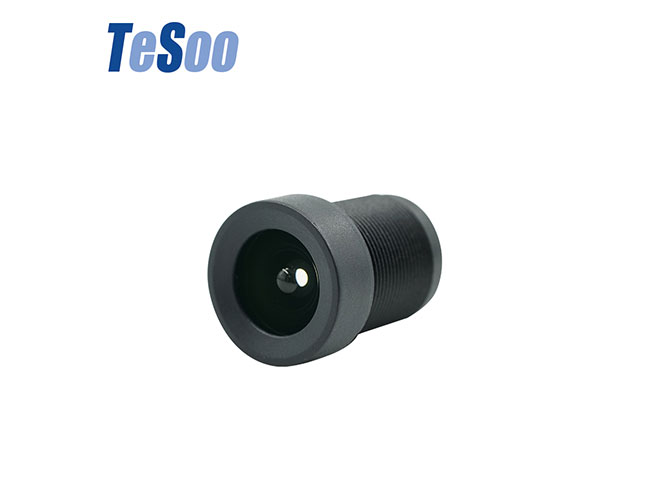

Tesoo Board M12 Lens

Tesoo m12 board lens can increase the C port so that you can connect the M12 interface camera to the driving recorder. The sensor size of m12 board lens is 1/1.8''and 1/4''. TTL: 14-30mm. EFL: 1.26-16mm. F.NO: 1.0/2.0/2.2/2.4/2.8/4.8/ 6.0. MBFL: 1.84-6.30mm. Get board camera lens price now!

Buy Tesoo Board M12 Lens   >

Sliding

02

Specifications of Tesoo Board M12 Lens


M12 Board Lens
Board Camera Lens
Board Lens
M12 Board Lens
Board Camera Lens
PART No.TS-2816T-A01
TTL15.89mm
EFL1.83mm
F/NO2.4
MBFL2.63mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)212°220°
(H)180°198°
(V)102°150°
MAX IMAGE CIRCLEφ6.80mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*13.26
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Board Lens
M12 Board Lens
Board Camera Lens
Board Lens
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NO2.4
MBFL5.06mm
SENSOR SIZE1/2.3''1/1.8''
FOVFOV
(D)82°93°
(H)62°78°
(V)44°50°
TV-DISTORTION＜-10%＜-12%
MAX IMAGE CIRCLEφ9.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Board Lens
Board Camera Lens
Board Lens
M12 Board Lens
PART No.TS-2322H-A00
TTL22mm
EFL4.28mm
F/NO2.2
MBFL2.55mm
SENSOR SIZE1/2.3''1/2.5''
FOVFOV
(D)82°78°
(H)69°66°
(V)55°36°
TV-DISTORTION＜-1.5%＜-1%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
CONSTRUCTION4G2P+Metal
DIAMENSIONSφ14*19.45
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Board Camera Lens
Board Lens
M12 Board Lens
Board Camera Lens
Board Lens
M12 Board Lens
PART No.TS-1823N-A00
TTL23mm
EFL4.0mm
F/NO2.8
MBFL5.93mm
SENSOR SIZE1/2.3''1/1.8''
FOVFOV
(D)118°135°
(H)93°110°
(V)69°73°
TV-DISTORTION＜-20%＜-25%
MAX IMAGE CIRCLEφ10.2mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.07
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Board Camera Lens
Board Lens
M12 Board Lens
Board Camera Lens
PART No.TS-1830G-A00
TTL30mm
EFL6mm
F/NO1.0
MBFL5.24mm
SENSOR SIZE1/1.8''
FOV
(D)69°
(H)60°
(V)34°
TV-DISTORTION＜-3%
MAX IMAGE CIRCLEφ9.2mm
MountM16*0.5
RESOLUTION4K/8MP
DIAMENSIONSφ18*24.77
Operating temp.-20 ~ +70℃
Storage temp.-25 ~ +80℃


Board Lens
M12 Board Lens
Board Camera Lens
Board Lens
PART No.TS-2019D-A00
TTL18.72mm
EFL10mm
F/NO6.0
MBFL6.30mm
SENSOR SIZE1/2''1/2.5''
FOVFOV
(D)42°34°
(H)36°30°
(V)25°18°
TV-DISTORTION＜-0.8%＜-0.6%
MAX IMAGE CIRCLEφ8.5mm
MountM12*0.5
CONSTRUCTION6E
DIAMENSIONSφ14*12.4
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


Board Lens
M12 Board Lens
Board Camera Lens
Board Lens
M12 Board Lens
Board Camera Lens
PART No.TS-2314T-A10
TTL14mm
EFL1.80mm
F/NO2.0
MBFL2.33mm
SENSOR SIZE1/4''1/2.8''
FOVFOV
(D)177°200°
(H)136°200°
(V)79°105°
TV-DISTORTION＜-45%＜-52%
MAX IMAGE CIRCLEφ4.7mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Board Lens
M12 Board Lens
Board Camera Lens
Board Lens
M12 Board Lens
PART No.TS-2918X-A18
TTL17.75mm
EFL1.26mm
F/NO2.2
MBFL1.84mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)240°240°
(H)240°240°
(V)150°222°
MAX IMAGE CIRCLEφ4.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ18*15.91
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Board Camera Lens
Board Lens
M12 Board Lens
Board Camera Lens
Board Lens
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NO4.8
MBFL2.89mm
SENSOR SIZE1/3''1/2.5''
FOVFOV
(D)22°27°
(H)20°23°
(V)11°13°
TV-DISTORTION＜-0.1%＜-0.5%
MAX IMAGE CIRCLEφ7.60mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*13.11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Board Lens
M12 Board Lens
Board Camera Lens
Board Camera Lens
PART No.TS-2722L-B00
TTL22.3mm
EFL1.65mm
F/NO2.0
MBFL5.2mm
SENSOR SIZE1/2.8''
FOV
(D)118°
(H)110°
(V)84°
TV-DISTORTION＜-1%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
Resolution4K/8MP
DIAMENSIONSφ14*17.1
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃
