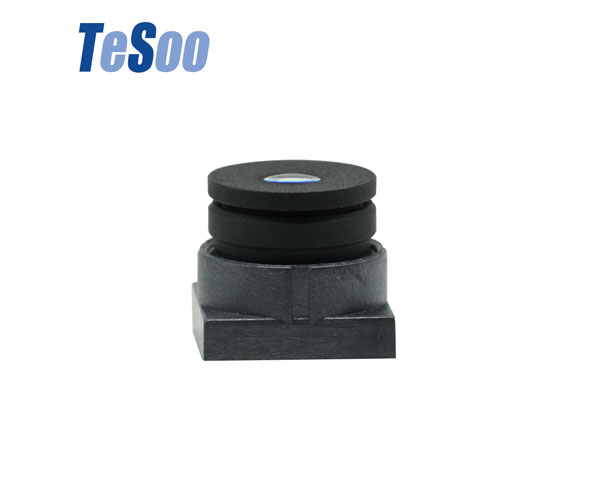

Tesoo 3D Mini Lens

Tesoo 3d lens is a single thin and flat structure with multiple waveguides (looks like tiny pillars) arranged in a specific pattern. The sensor size of 3d mini lens is 1/2.7'' to 1/9''. TTL: 2.7-22.7mm. EFL: 1.03-4.80mm. F.NO: 1.2/2.6/4.0/5.7. MBFL: 0.55-5.23mm. Get 3d camera lens price now!

Buy Tesoo 3D Mini Lens   >

Sliding

02

Specifications of Tesoo 3D Mini Lens


3d Camera Lens
3d Lens
3d Tof Lens
3d Mini Lens
3d Camera Lens
PART No.TS-2723M-A00
TTL22.28mm
EFL3.1mm
F/NO1.2
MBFL4.66
SENSOR  SIZE1/2.7''
FOV
(D)132°
(H)111°
(V)59°
TV-DISTORTION＜-18%
MAX IMAGE CIRCLEφ7.0mm
MountM12*0.5
RESOLUTION4MP
DIAMENSIONSφ14*17.3
Operating temp.-20 ~ +70℃
Storage temp.-25~ +80℃


3d Lens
3d Tof Lens
3d Mini Lens
3d Camera Lens
PART No.TS-2709G-A08
TTL8.47mm
EFL4.60mm
F/NO2.6
MBFL1.48mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)68°72°
(H)59°66°
(V)38°39°
TV-DISTORTION＜-1.5%＜-2%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION3G1MG+Metal
DIAMENSIONSφ9*6.99
Operating temp.-30 ~ +80℃
Storage temp.-40 ~ +85℃


3d Lens
3d Tof Lens
3d Mini Lens
3d Camera Lens
3d Lens
PART No.TS-4006E-AM6
TTL5.99mm
EFL4.63mm
F/NO5.7
MBFL1.99mm
SENSOR  SIZE1/4''
FOV
(D)50°
(H)44°
(V)26°
TV-DISTORTION＜-0.08%
MAX IMAGE CIRCLEφ4.8mm
MountM5.8*0.235
RESOLUTION5MP
DIAMENSIONSφ3*4
Operating temp.-20 ~ +70℃
Storage temp.-25~ +80℃


3d Tof Lens
3d Mini Lens
3d Camera Lens
3d Lens
PART No.TS-2723K-B00
TTL22.7mm
EFL4.0mm
F/NO1.2
MBFL5.23mm
SENSOR  SIZE1/2.7''
FOV
(D)105°
(H)89°
(V)49°
TV-DISTORTION＜-12%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTION4E
DIAMENSIONSφ14*17.17
Operating temp.-20 ~ +70℃
Storage temp.-25 ~ +80℃


3d Tof Lens
3d Mini Lens
3d Camera Lens
3d Lens
3d Tof Lens
PART No.TS-2508H-A09
TTL7.49mm
EFL4.80mm
F/NO2.6
MBFL1.74mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)72°77°
(H)62°67°
(V)36°39°
TV-DISTORTION＜-1%＜-1%
MAX IMAGE CIRCLEφ8.2mm
MountM9*0.35
CONSTRUCTION2G2P +Metal
DIAMENSIONSφ9*5.75
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


3d Mini Lens
3d Camera Lens
3d Lens
3d Tof Lens
3d Mini Lens
3d Camera Lens
PART No.TS-9002M-AM3
TTL2.7mm
EFL1.03mm
F/NO4.0
MBFL0.55mm
SENSOR  SIZE1/9''
FOV
(D)129°
(H)99°
(V)50°
TV-DISTORTION＜-25%
MAX IMAGE CIRCLEφ2.1mm
MountM2.6*0.25
RESOLUTION2MP
DIAMENSIONSφ2*2.1
Operating temp.-20 ~ +70℃
Storage temp.-25~ +80℃
