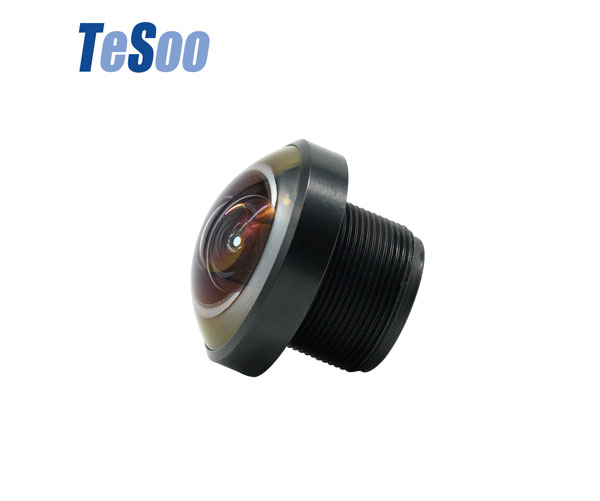

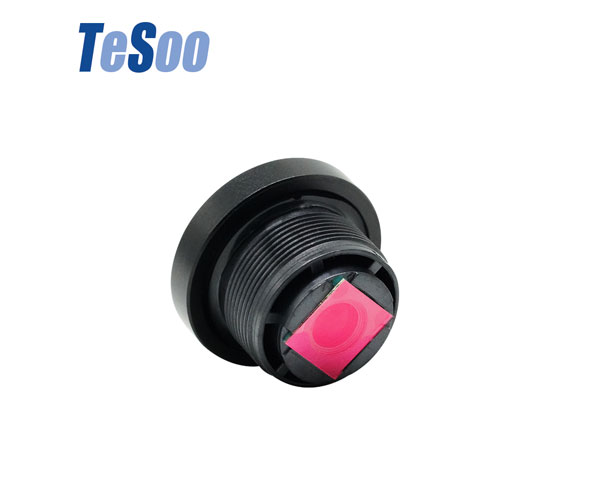

Tesoo 220 Degree Fisheye Lens

Name: Tesoo 220 Degree Fisheye Lens
Brand: Shenzhen Tesoo Optical Co., Ltd.
Price: 20 USD
Rating: 4.4 (5 reviews)

Tesoo 220 degree fisheye lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of 220 degree fisheye lens is 1/2.3'' to 1/4''. TTL: 12.8-17.75mm. EFL: 0.83-1.83mm. F.NO: 1.8/2.0/2.2/2.4. MBFL: 1.30-2.63mm. Get 220 degree lens price from Tesoo, the professional fisheye lens manufacturer now!

Buy Tesoo 220 Degree Fisheye Lens >

Sliding

Specifications of Tesoo 220 Degree Fisheye Lens



PART No.	TS-2913U-A00
TTL	13.2mm
EFL	1.35mm
F/NO	2.0
MBFL	2.20mm
SENSOR SIZE	1/2.9''	1/2.7''
	FOV	FOV
(D)	215°	215°
(H)	215°	215°
(V)	130°	140°
MAX IMAGE CIRCLE	φ4.70mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*11
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-4013T-A01
TTL	14.11mm
EFL	0.83mm
F/NO	2.0
MBFL	1.69mm
SENSOR SIZE	1/4''	1/3''
	FOV	FOV
(D)	220°	220°
(H)	210°	220°
(V)	158°	190°
MAX IMAGE CIRCLE	φ4.0mm
Mount	M12*0.5
CONSTRUCTION	2G4P+Plastic
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*12.42
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-3013U-A00
TTL	13mm
EFL	1.40mm
F/NO	1.8
MBFL	2.10mm
SENSOR SIZE	1/3''	1/2.7''
	FOV	FOV
(D)	210°	210°
(H)	210°	210°
(V)	130°	150°
MAX IMAGE CIRCLE	φ4.40mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*10.9
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2816T-A01
TTL	15.89mm
EFL	1.83mm
F/NO	2.4
MBFL	2.63mm
SENSOR SIZE	1/2.7''	1/2.3''
	FOV	FOV
(D)	212°	220°
(H)	180°	198°
(V)	102°	150°
MAX IMAGE CIRCLE	φ6.80mm
Mount	M12*0.5
CONSTRUCTION	All Glass+Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*13.26
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-4013U-A00
TTL	12.8mm
EFL	1.0mm
F/NO	2.0
MBFL	1.30mm
SENSOR SIZE	1/4''	1/2.8''
	FOV	FOV
(D)	210°	210°
(H)	210°	210°
(V)	160°	210°
TV-DISTORTION	＜-90%	＜-110%
MAX IMAGE CIRCLE	φ3.1mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ16*11.50
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2918X-A18
TTL	17.75mm
EFL	1.26mm
F/NO	2.2
MBFL	1.84mm
SENSOR SIZE	1/2.7''	1/2.3''
	FOV	FOV
(D)	240°	240°
(H)	240°	240°
(V)	150°	222°
MAX IMAGE CIRCLE	φ4.90mm
Mount	M12*0.5
CONSTRUCTION	All Glass+Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ18*15.91
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃
