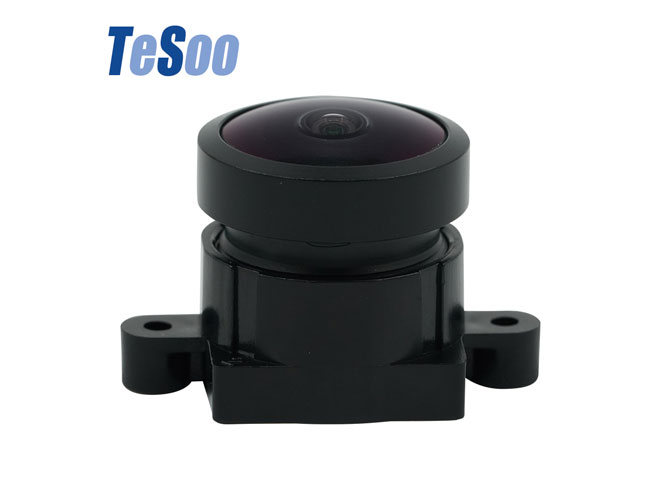

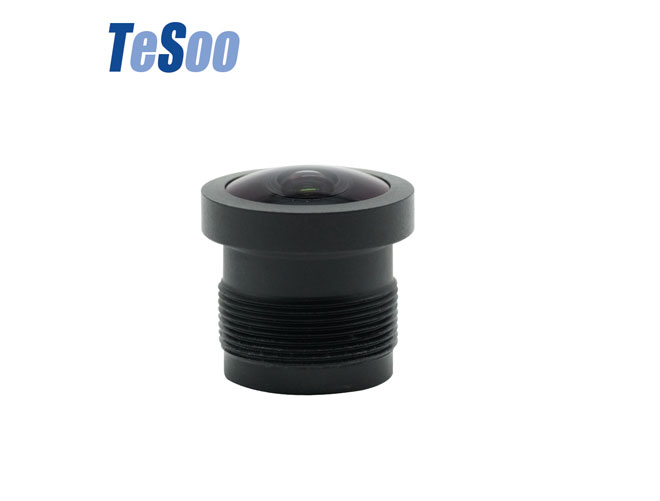

Tesoo 170 Degree Wide Angle Lens

Tesoo 170 degree wide angle lens can show a considerable range of clarity and helps to enhance the appeal of the picture. The sensor size of 170 wide angle lens is 1/2.3'' to 1/4'. TTL: 13.50-16.64mm. EFL: 1.50-2.20mm. F.NO: 2.0/2.4. MBFL: 2.10-2.63mm. Get 170 wide angle lens price from Tesoo, the professional wide angle lens manufacturers now!

Buy Tesoo 170 Degree Wide Angle Lens   >

Sliding

02

Specifications of Tesoo 170 Degree Wide Angle Lens


170 Wide Angle Lens
170 Degree Wide Angle Lens
170 Wide Angle Lens
170 Degree Wide Angle Lens
170 Wide Angle Lens
170 Degree Wide Angle Lens
PART No.TS-2314T-A10
TTL14mm
EFL1.80mm
F/NO2.0
MBFL2.33mm
SENSOR SIZE1/4''1/2.8''
FOVFOV
(D)177°200°
(H)136°200°
(V)79°105°
TV-DISTORTION＜-45%＜-52%
MAX IMAGE CIRCLEφ4.7mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


170 Wide Angle Lens
170 Degree Wide Angle Lens
170 Wide Angle Lens
170 Degree Wide Angle Lens
PART No.TS-2818S-A02
TTL16.64mm
EFL2.20mm
F/NO2.0
MBFL2.16mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)188°200°
(H)160°176°
(V)85°130°
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


170 Wide Angle Lens
170 Degree Wide Angle Lens
170 Wide Angle Lens
170 Degree Wide Angle Lens
170 Wide Angle Lens
PART No.TS-3014S-A00
TTL13.50mm
EFL1.50mm
F/NO2.0
MBFL2.10mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)178°190°
(H)150°190°
(V)80°120°
MAX IMAGE CIRCLEφ4.80mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11.4
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


170 Degree Wide Angle Lens
170 Wide Angle Lens
170 Degree Wide Angle Lens
170 Wide Angle Lens
170 Degree Wide Angle Lens
PART No.TS-2816T-A01
TTL15.89mm
EFL1.83mm
F/NO2.4
MBFL2.63mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)212°220°
(H)180°198°
(V)102°150°
DISTORTION(F-θ)＜-0.6%＜-1%
MAX IMAGE CIRCLEφ6.80mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*13.26
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
