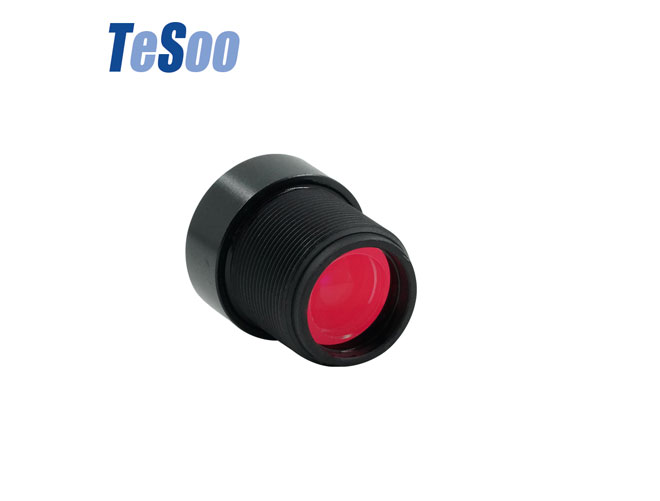

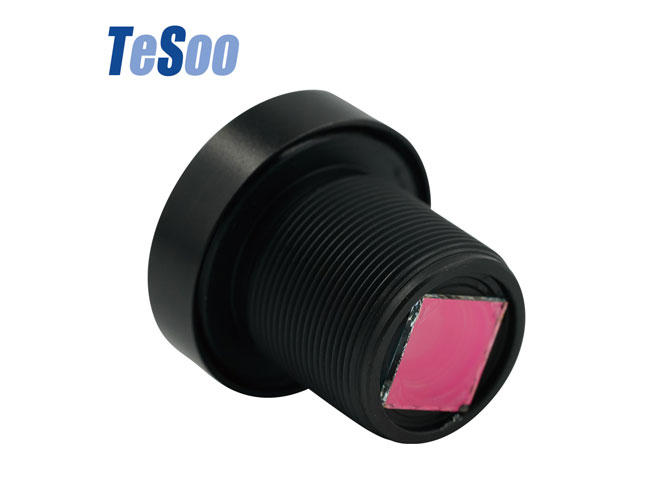

Tesoo 12mm Lens Mount

Tesoo m12 lens mount can increase the C port so that you can connect the M12 interface camera to the driving recorder. The sensor size of m12 lens mount is 1/1.8''and 1/3''. TTL: 15.02-25.3mm. EFL: 2.90-16mm. F.NO: 1.6/1.8/2.0/2.2/2.4/2.8/4.0/4.8. MBFL: 2.21-6.55mm. Get m12 mount lens price now!

Buy Tesoo 12mm Lens Mount   >

Sliding

02

Specifications of Tesoo 12mm Lens Mount


M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
PART No.TS-2721O-A00
TTL21.15mm
EFL2.90mm
F/NO2.2
MBFL5.30mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)132°148°
(H)116°122°
(V)60°64°
TV-DISTORTION＜-22%＜-30%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTION2G3P+Plastic
DIAMENSIONSφ14*15.85
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
PART No.TS-2723N-B00
TTL22.2mm
EFL3.20mm
F/NO1.6
MBFL5.35mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)120°134°
(H)103°112°
(V)55°59°
TV-DISTORTION＜-16%＜-19%
MAX IMAGE CIRCLEφ7.0mm
MountM12*0.5
CONSTRUCTION4E+Plastic
DIAMENSIONSφ14*16.85
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
PART No.TS-2316Q-A00
TTL15.89mm
EFL2.95mm
F/NO2.0
MBFL2.88mm
SENSOR SIZE1/2.5''1/2.3''
FOVFOV
(D)143°168°
(H)125°126°
(V)69°92°
TV-DISTORTION＜-33%＜-40%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTION4G3P+Metal
DIAMENSIONSφ14*13.01
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
PART No.TS-2323O-A17
TTL23mm
EFL3.20mm
F/NO1.8
MBFL5.91mm
SENSOR SIZE1/2.5''1/2.3''
FOVFOV
(D)136°152°
(H)116°117°
(V)65°86°
TV-DISTORTION＜-25%＜-35%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ17*17.09
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
PART No.TS-2316M-A00
TTL15.91mm
EFL3.65mm
F/NO2.0
MBFL3.68mm
SENSOR SIZE1/2.5''1/2.3''
FOVFOV
(D)132°148°
(H)110°112°
(V)58°76°
TV-DISTORTION＜-28%＜-35%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.23
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
PART No.TS-1823N-A00
TTL23mm
EFL4.0mm
F/NO2.8
MBFL5.93mm
SENSOR SIZE1/2.3''1/1.8''
FOVFOV
(D)118°135°
(H)93°110°
(V)69°73°
TV-DISTORTION＜-20%＜-25%
MAX IMAGE CIRCLEφ10.2mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.07
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
PART No.TS-1825I-A20
TTL25.3mm
EFL4.20mm
F/NO2.8
MBFL2.21mm
SENSOR SIZE1/2.3''1/1.8''
FOVFOV
(D)78°93°
(H)68°81°
(V)55°65°
TV-DISTORTION＜-0.3%＜-0.5%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ20*23.09
Operating temp.-20 ~ +80℃
Storage temp.-40 ~ +90℃


M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
PART No.TS-2322H-A00
TTL22mm
EFL4.28mm
F/NO2.2
MBFL2.55mm
SENSOR SIZE1/2.5''1/2.3''
FOVFOV
(D)78°82°
(H)66°69°
(V)36°55°
TV-DISTORTION＜-1%＜-1.5%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
CONSTRUCTION4G2P+Metal
DIAMENSIONSφ14*19.45
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NO2.4
MBFL5.06mm
SENSOR SIZE1/2.3''1/1.8''
FOVFOV
(D)82°93°
(H)62°78°
(V)44°50°
TV-DISTORTION＜-10%＜-12%
MAX IMAGE CIRCLEφ9.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
PART No.TS-2721F-A00
TTL21.43mm
EFL6.50mm
F/NO2.0
MBFL6.55mm
SENSOR SIZE1/2.5''1/2.3''
FOVFOV
(D)62°64°
(H)53°51°
(V)31°40°
TV-DISTORTION＜-10%＜-12%
MAX IMAGE CIRCLEφ8.80mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*15.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Lens Mount
M12 Mount
M12 Lens Mount
M12 Mount
M12 Lens Mount
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NO4.8
MBFL2.89mm
SENSOR SIZE1/3''1/2.5''
FOVFOV
(D)22°27°
(H)20°23°
(V)11°13°
TV-DISTORTION＜-0.1%＜-0.5%
MAX IMAGE CIRCLEφ7.60mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*13.11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
