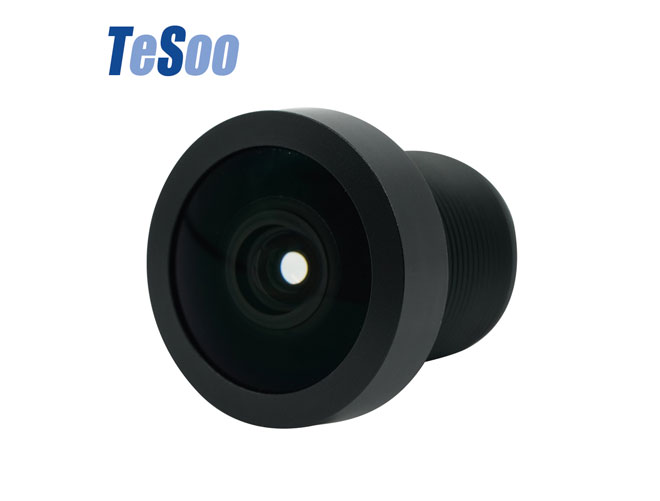

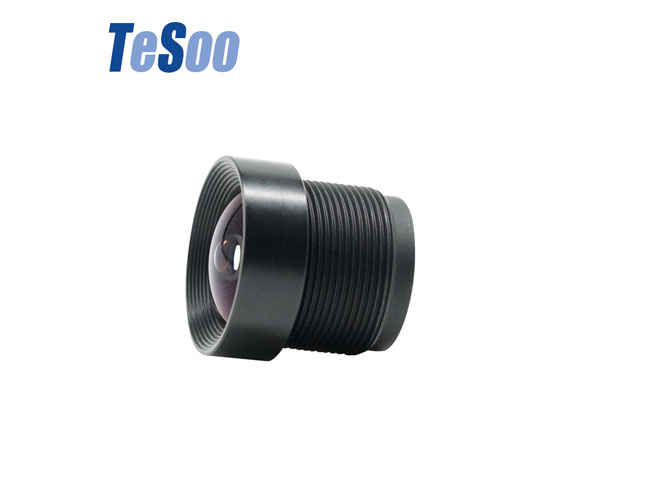

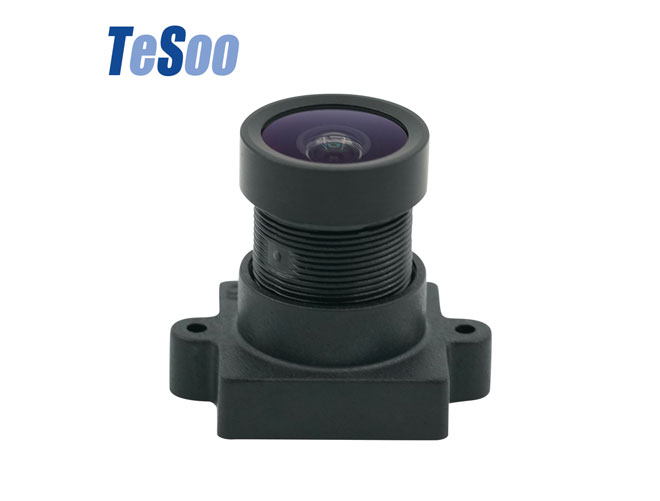

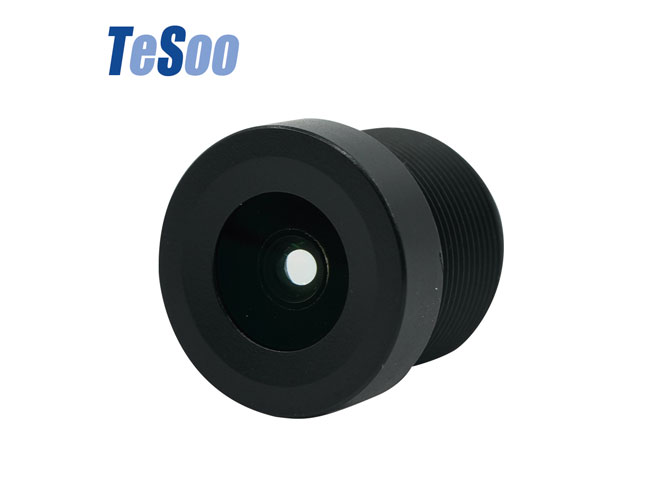

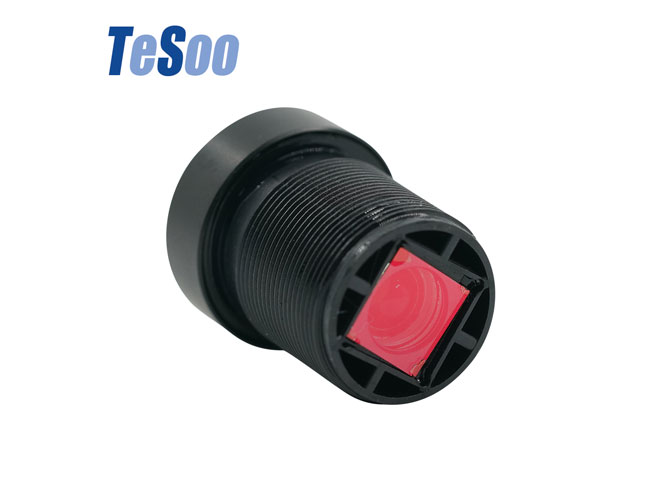

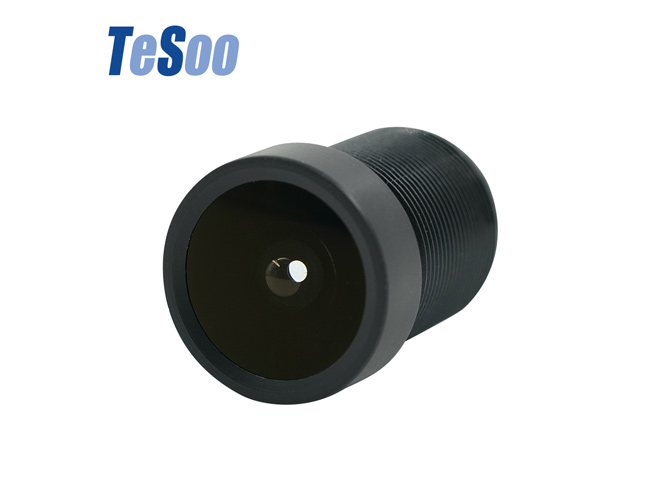

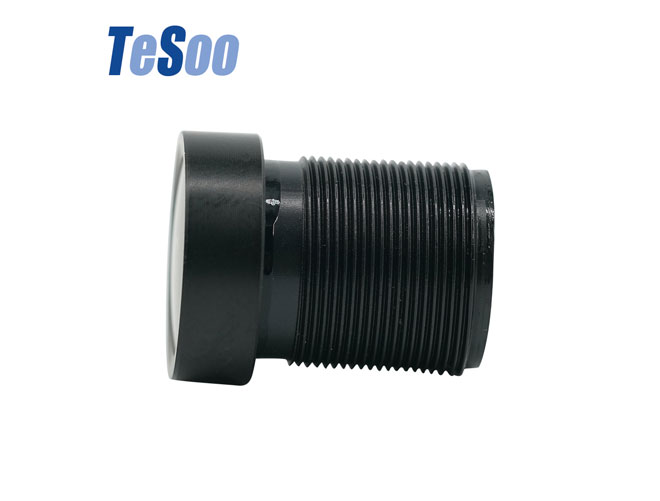

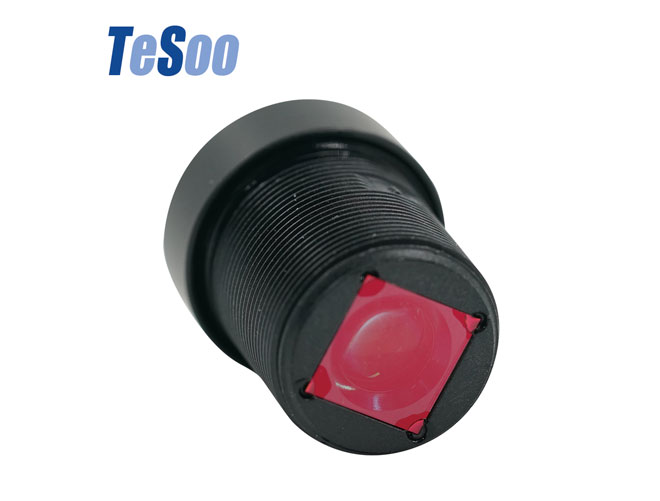

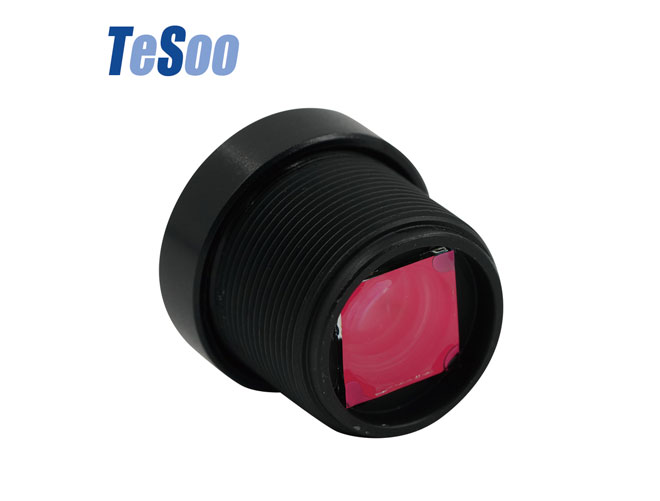

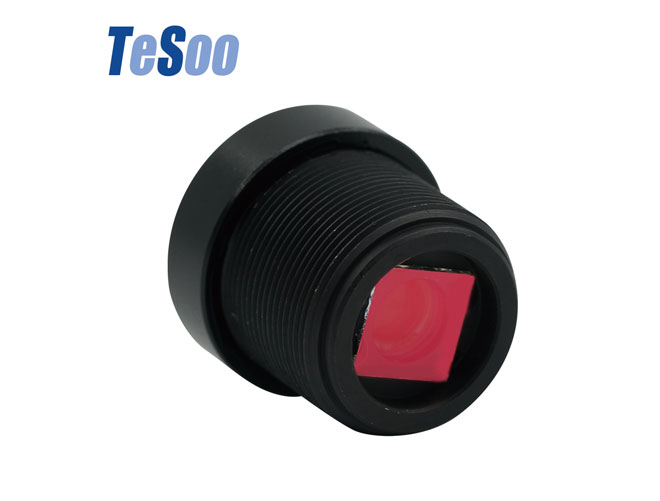

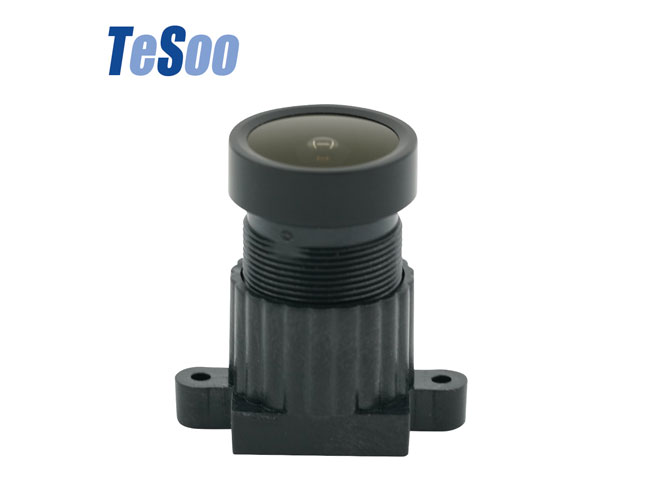

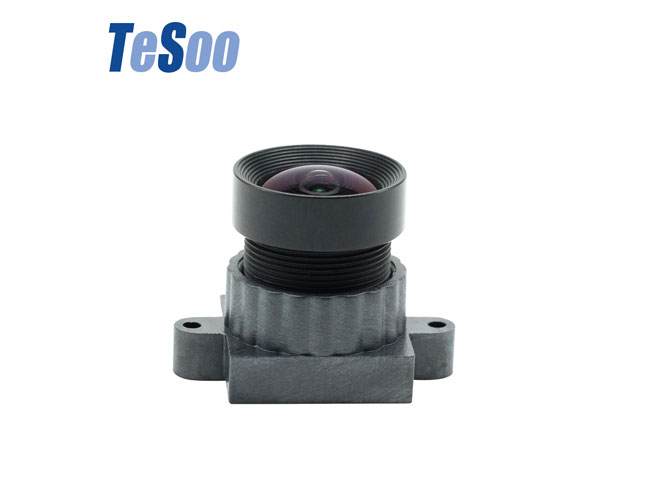

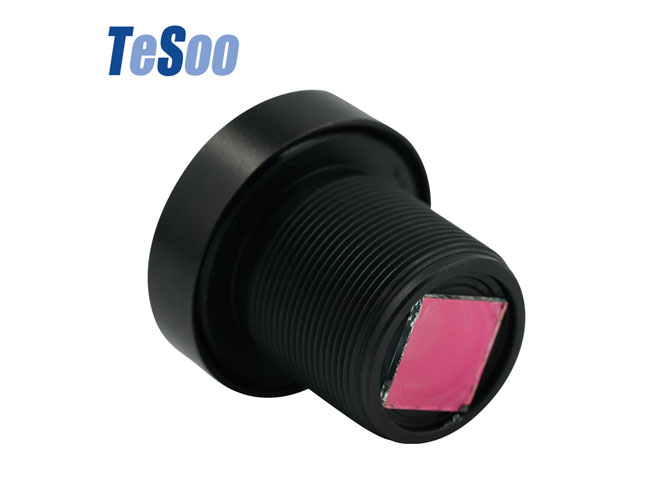

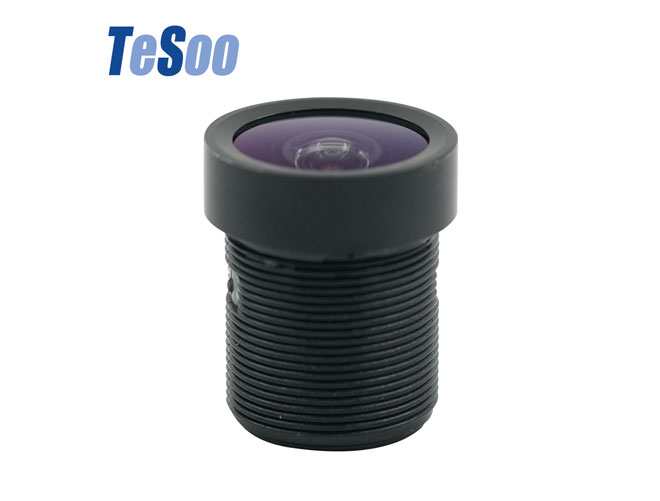

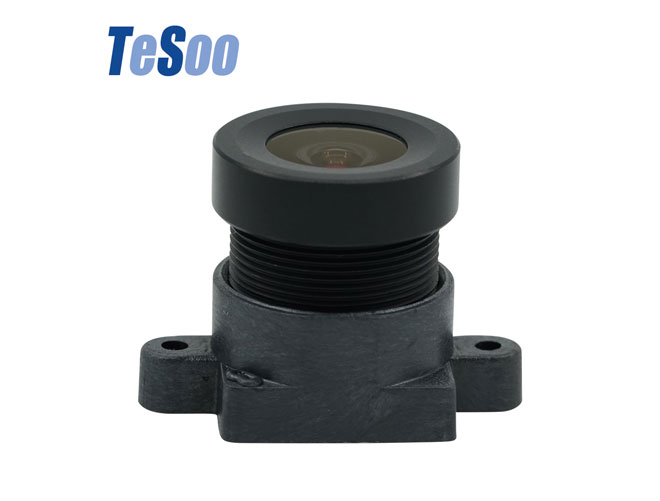

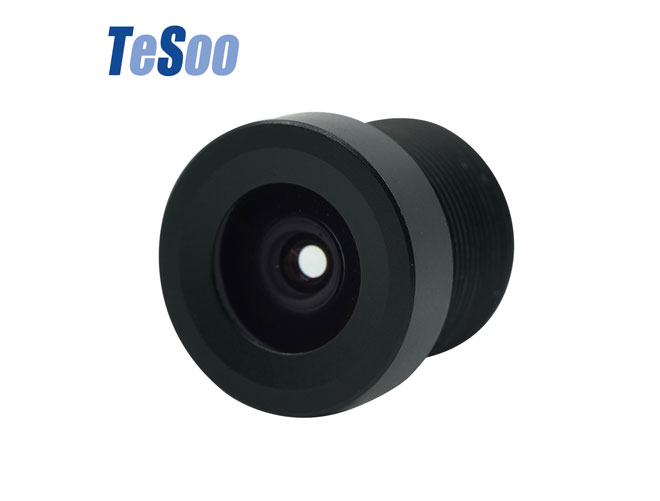

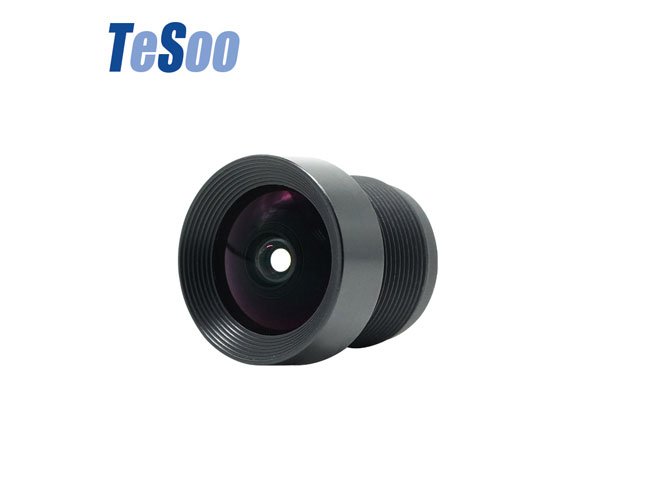

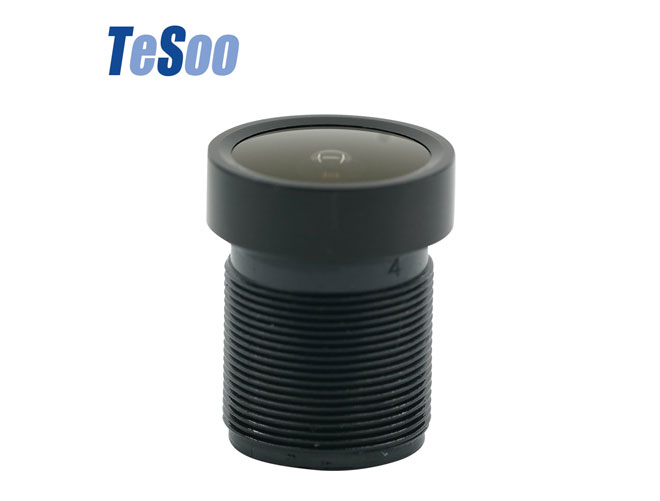

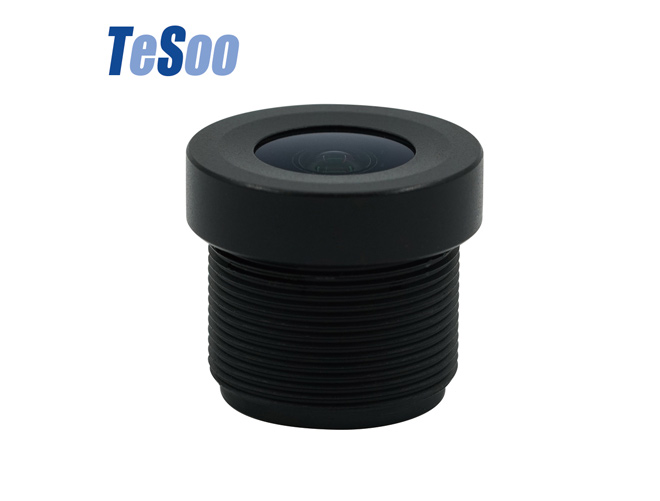

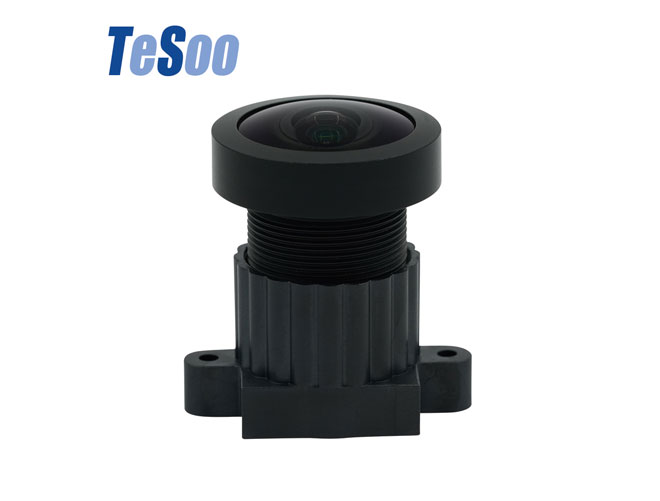

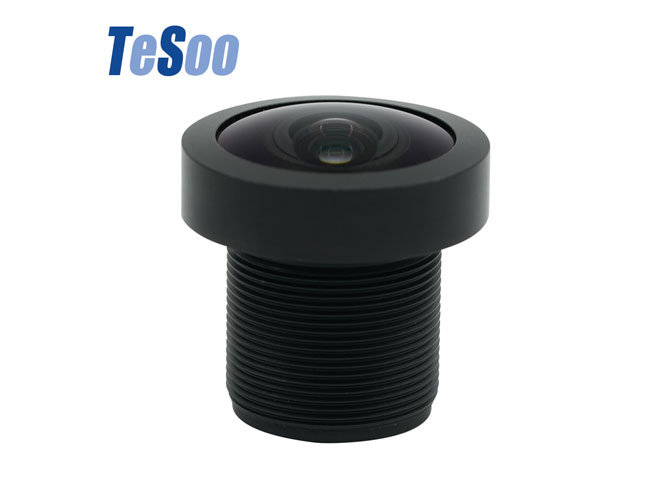

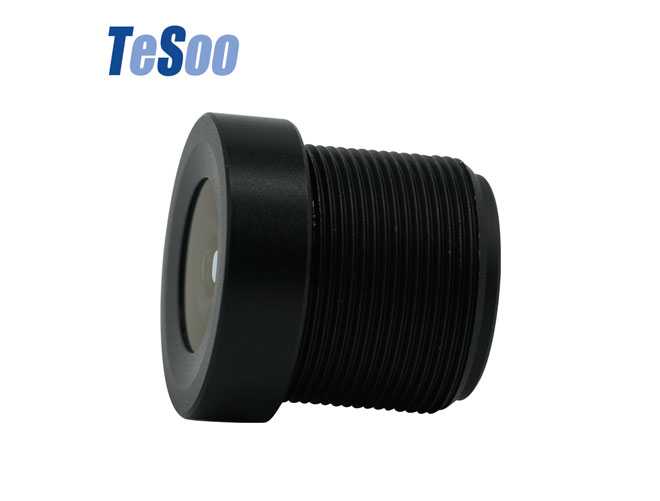

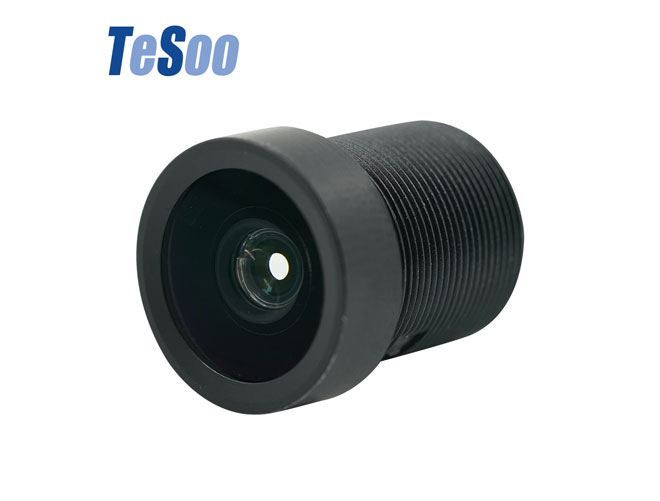

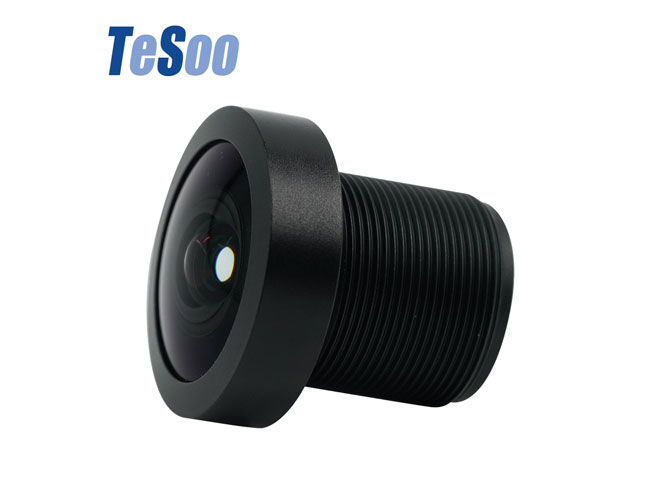

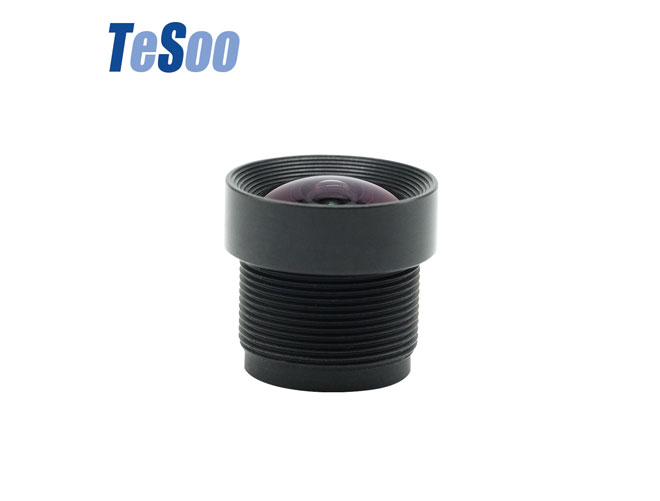

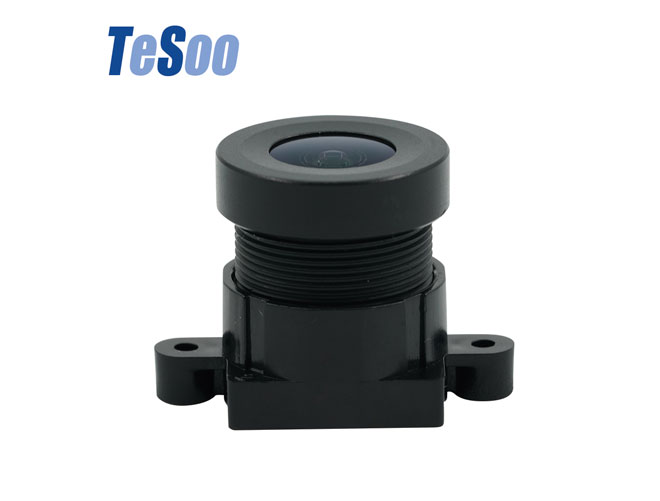

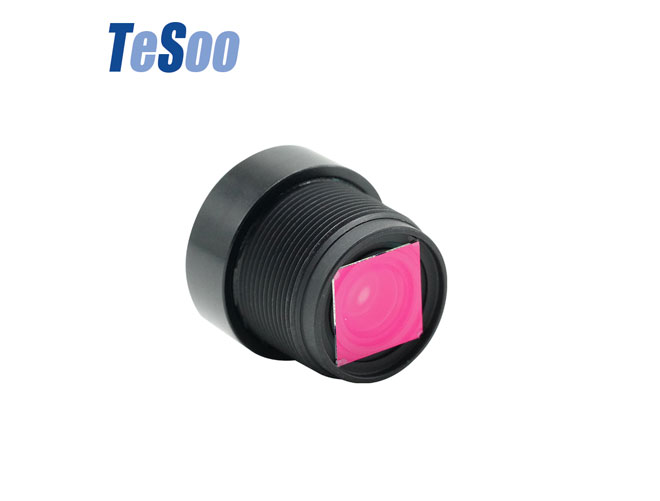

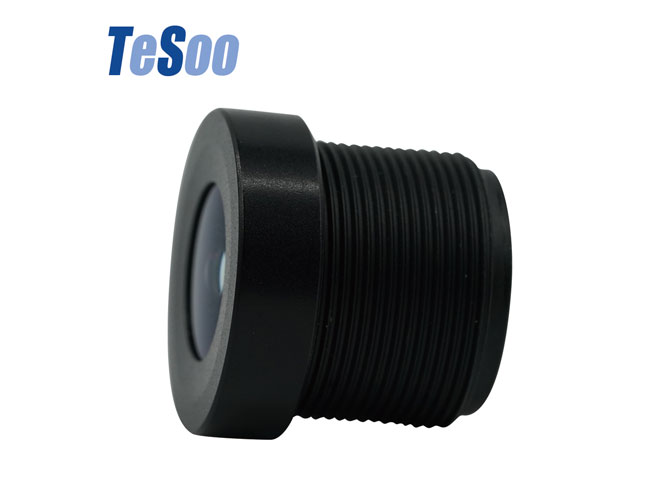

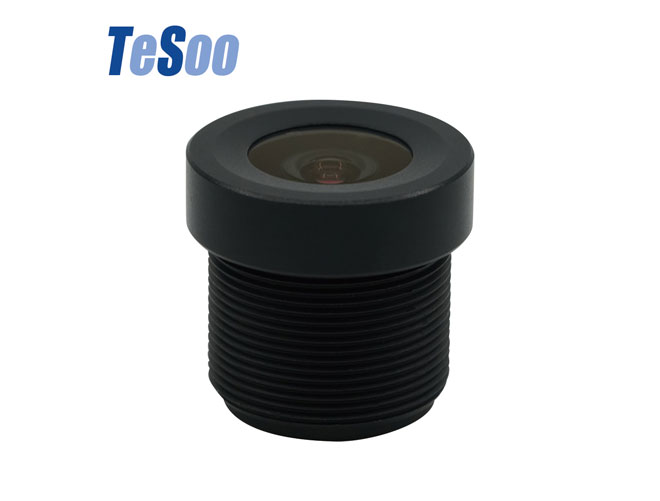

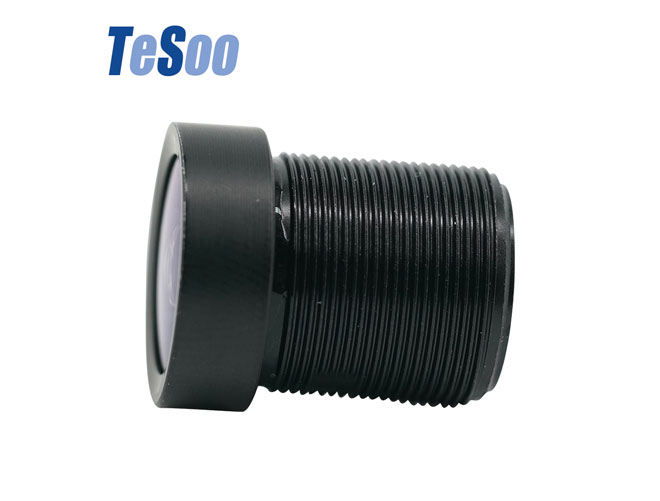

Tesoo 120 Degree Wide Angle Camera Lens

Name: Tesoo 120 Degree Wide Angle Camera Lens
Brand: Shenzhen Tesoo Optical Co., Ltd.
Price: 20 USD
Rating: 4.4 (5 reviews)

Tesoo 120 wide angle lens can show a considerable range of clarity and helps to enhance the appeal of the picture. The sensor size of 120 degree wide angle lens is 1/2.3'' to 1/3''. TTL: 15.89-23mm. EFL: 1.65-3.65mm. F.NO: 1.6/1.8/2.0/2.2. Get 120 degree lens price from Tesoo, the professional wide angle lens suppliers now!

Buy Tesoo 120 Degree Wide Angle Camera Lens >

Sliding

Specifications of Tesoo 120 Degree Wide Angle Camera Lens



PART No.	TS-2721O-A00
TTL	21.15mm
EFL	2.90mm
F/NO	2.2
MBFL	5.30mm
SENSOR SIZE	1/3''	1/2.7''
	FOV	FOV
(D)	132°	148°
(H)	116°	122°
(V)	60°	64°
TV-DISTORTION	＜-22%	＜-30%
MAX IMAGE CIRCLE	φ6.90mm
Mount	M12*0.5
CONSTRUCTION	2G3P+Plastic
DIAMENSIONS	φ14*15.85
Operating temp.	-20 ~ +70℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2323O-A17
TTL	23mm
EFL	3.20mm
F/NO	1.8
MBFL	5.91mm
SENSOR SIZE	1/2.7''	1/2.3''
	FOV	FOV
(D)	124°	152°
(H)	107°	117°
(V)	59°	86°
TV-DISTORTION	＜-25%	＜-30%
MAX IMAGE CIRCLE	φ8.20mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ17*17.09
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2316M-A00
TTL	15.91mm
EFL	3.65mm
F/NO	F2.0
MBFL	3.68mm
SENSOR SIZE	1/2.3''
SENSOR SIZE	FOV
(D)	148°
(H)	112
(V)	76°
MAX IMAGE CIRCLE	φ8.20mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ14*12.23
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2722L-B00
TTL	22.3mm
EFL	1.65mm
F/NO	2.0
MBFL	5.2mm
SENSOR SIZE	1/2.8''	1/2.7''
SENSOR SIZE	FOV	FOV
(D)	118°	120°
(H)	110°	115°
(V)	84°	85°
TV-DISTORTION	＜-1%	＜-1.5%
MAX IMAGE CIRCLE	φ8.30mm
Mount	M12*0.5
Resolution	4K/8MP
Operating temp.	-20 ~ +70℃
Storage temp.	-40 ~ +80℃



PART No.	TS-2723N-B00
TTL	22.2mm
EFL	3.20mm
F/NO	1.6
MBFL	5.35mm
SENSOR SIZE	1/3''	1/2.7''
	FOV	FOV
(D)	120°	134°
(H)	103°	112°
(V)	55°	59°
TV-DISTORTION	＜-16%	＜-19%
MAX IMAGE CIRCLE	φ7.0mm
Mount	M12*0.5
CONSTRUCTION	4E+Plastic
DIAMENSIONS	φ14*16.85
Operating temp.	-20 ~ +75℃
Storage temp.	-25 ~ +80℃



PART No.	TS-2717O-A00
TTL	16.81mm
EFL	3.20mm
F/NO	2.2
MBFL	3.68mm
SENSOR SIZE	1/3''	1/2.7''
	FOV	FOV
(D)	128°	150°
(H)	105°	118°
(V)	54°	60°
TV-DISTORTION	＜-26%	＜-32%
MAX IMAGE CIRCLE	φ6.90mm
Mount	M12*0.5
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ14*13.13
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2316Q-A00
TTL	15.89mm
EFL	2.95mm
F/NO	F2.0
MBFL	2.88mm
SENSOR SIZE	1/2.3''
SENSOR SIZE	FOV
(D)	168°
(H)	126°
(V)	92°
MAX IMAGE CIRCLE	φ8.2mm
Mount	M12*0.5
CONSTRUCTION	7E
DIAMENSIONS	φ14*13.01
Operating temp.	-20 ~ +75℃
Storage temp.	-25 ~ +80℃
