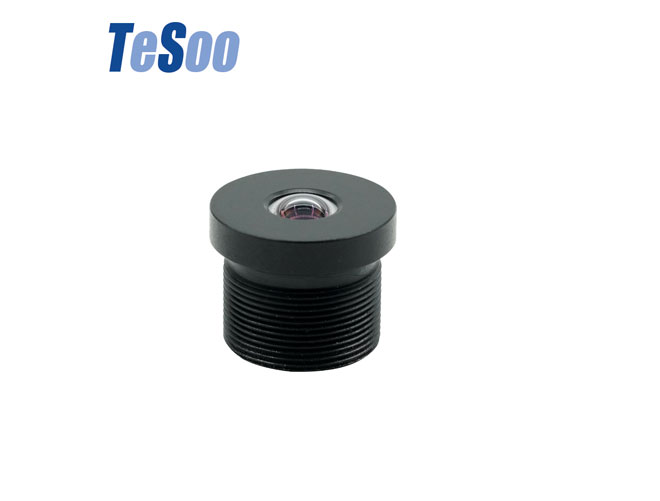

Tesoo 10mm Lens Field Of View

Tesoo 10mm lens field of view can increase the C port so that you can connect the M12 interface camera to the driving recorder. The sensor size of 10mm lens is 1/2''and 1/3''. TTL: 15.02-22.5mm. EFL: 10-16mm. F.NO: 2.0/4.0/4.8/6.0. MBFL: 2.89-6.30mm. Get 10mm lens field of view price now!

Buy Tesoo 10mm Lens Field Of View   >

Sliding

02

Specifications of Tesoo 10mm Lens Field Of View


10mm Lens Field Of View
10mm Lens Field Of View
10mm Lens Field Of View
10mm Lens Field Of View
PART No.TS-2019D-A00
TTL18.72mm
EFL10mm
F/NO6.0
MBFL6.30mm
SENSOR SIZE1/2''1/2.5''
FOVFOV
(D)42°34°
(H)36°30°
(V)25°18°
TV-DISTORTION＜-0.8%＜-0.6%
MAX IMAGE CIRCLEφ8.5mm
MountM12*0.5
CONSTRUCTION6E
DIAMENSIONSφ14*12.4
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
PART No.TS-2723C-A00
TTL22.5mm
EFL12mm
F/NO2.0
MBFL5.6mm
SENSOR SIZE1/2.7''1/3''
FOVFOV
(D)33°27°
(H)29°23°
(V)16°13°
TV-DISTORTION＜-3.5%＜-0.5%
MAX IMAGE CIRCLEφ7mm
MountM12*0.5
CONSTRUCTION6E
DIAMENSIONSφ14*16.9
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
10mm Lens Field of View
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NO4.8
MBFL2.89mm
SENSOR SIZE1/3''1/2.5''
FOVFOV
(D)22°27°
(H)20°23°
(V)11°13°
TV-DISTORTION＜-0.1%＜-0.5%
MAX IMAGE CIRCLEφ7.60mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*13.11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
